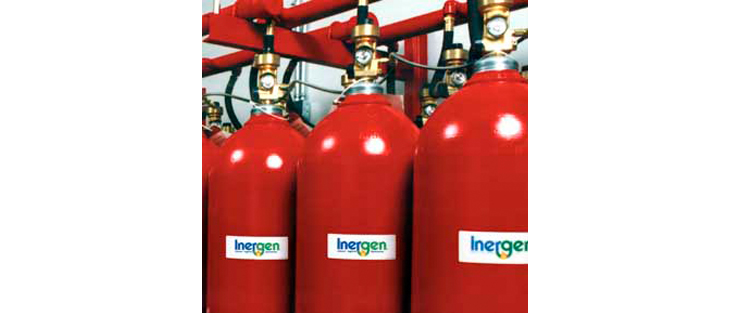

Inergen Gas Extinguishing System

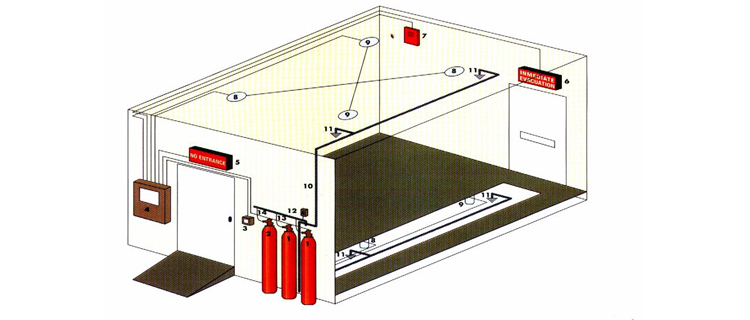

Operating principle
The INERGEN gas combines the latest generation of chemical extinguishing agents with 25/42 bar pressure extinguishing system. The nitrogen is used to transport the gas to the individual nozzles, where it evaporates rapidly, creating a homogenous atmosphere in the room.
Advantages
- No risk of personal injury
- Faster than extinguishing systems using natural gases, extinguishing agent release in less than 10 seconds.
- High environmental compatibility (GWP = 1/ALT (half life) of 3 to 5 days), no effect on the ozone layer (ODP=0).
- Extinguishing agent storage takes up little space as consumption is very low.
- Low extinguishing agent concentration needed.
- Pressure – free transport of the extinguishing gas.
- Possible to use existing piping systems, e.g. when upgrading Halon 1301 systems.

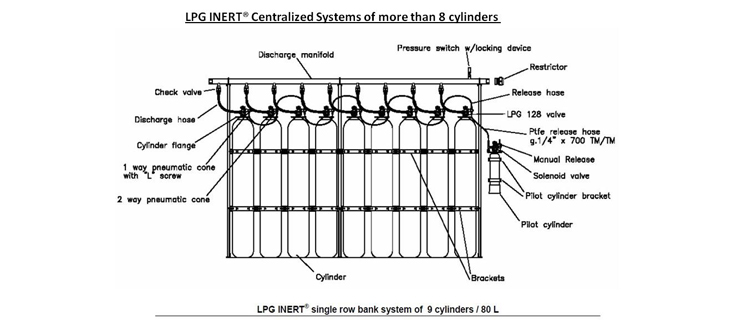

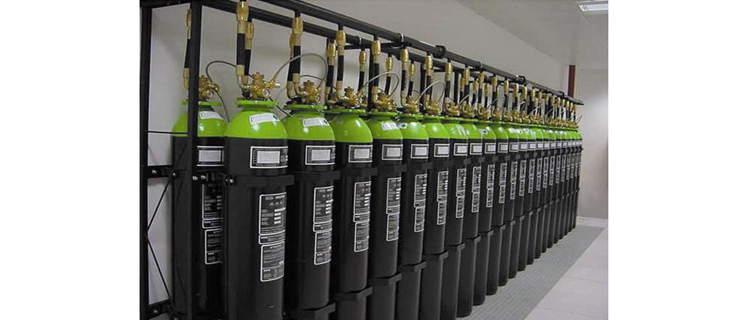

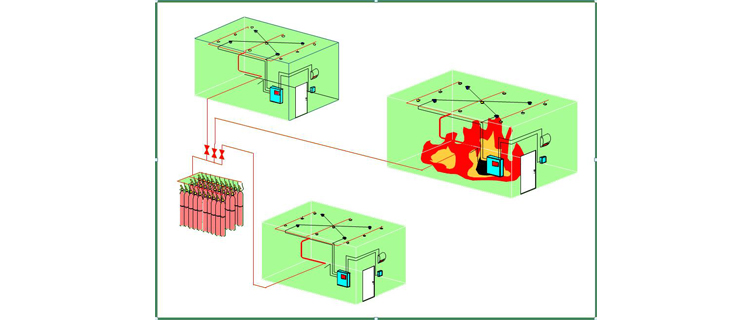

- Modular design option using multiple extinguishing agent storage containers in the protected area.
Properties of Inert Gases
- Inert gases are colourless, odourless and electrically non-conductive.
- The extinguishing efficiency of the inert gases is due primarily to its ability to reduce the oxygen level present in the surrounding air to such a proportion that the fire can no-longer burn.
- INERT agents are:
| LPG INERT® agents C |
Composition |
| INERT Gas IG-01 |
100% Argon |
| INERT Gas IG-55 |
50% Argon + 50% Nitrogen |
| INERT Gas IG-100 |
100% Nitrogen |
| INERT Gas IG-541 |
52% Nitrogen + 40% Argon + 8% CO2 |
Extinguishing Performance – Class A
| Extinguishing Agent |
Design Conc(% Vol.) |
Design Conc (m3/m3) |
| IG 01 |
38.7 |
0.481 |
| IG 55 |
37.2 |
0.457 |
| IG 100 |
37.2 |
0.457 |
| IG 541 |
36.8 |
0.451 |
Extinguishing Performance – Class B
| Extinguishing
Agent |
Design Conc
(% Vol.) |
Design Conc (m3/m3) |
| IG 01 |
54.6 |
0.776 |
| IG 55 |
45.5 |
0.597 |
| IG 100 |
40.3 |
0.507 |
| IG 541 |
38.03 |
0.470 |
Advantages To End User
- High Cost / Benefit ratio
- Fast Extinguishing Time
- Maximum Reduction of Damages
- Safe For Humans
- Less Occupied Space
- Less Weight
- Less Maintenance Cost
Applications
- Computer & Equipment Rooms
- Telecommunication Facilities
- Ship Engine & Cargo Rooms
- Microwave Relay Stations
- Museums
- Refineries
- Power Plants
- Nuclear Facilities
- Aircrafts
- Floating Roof Tanks Protection
- Military Vehicles
- Transformers &Flammable Liquid storage or process areas
